Punch KEL-FW
| Part No. | 80100 |
| EAN | 4251269335099 |
| Package quantity | 1 |
| Number of center punches | 4 |
| Thread UNF | 19 mm |
| Punching material | Plastic, Mild steel (St) |
| Max. wall thickness | 2 mm |
available
-
Products
?
Punch Drivers & DIN Rail Cutters
?
Punches CONFiX?
Punches CONFiX?
for CONFiX? Bulkhead Fittings, for Steel, Aluminum, Stainless Steel
These punches can be used to punch the special cutout shapes for the KEL-FW bulkhead fittings.
For max. 2 mm stainless steel (V2A versions), sheet steel, aluminium and plastic.
The punches are suitable for the hand hydraulic punch driver and the hydraulic foot pump. For the punches, we only recommend the hydraulic foot pump

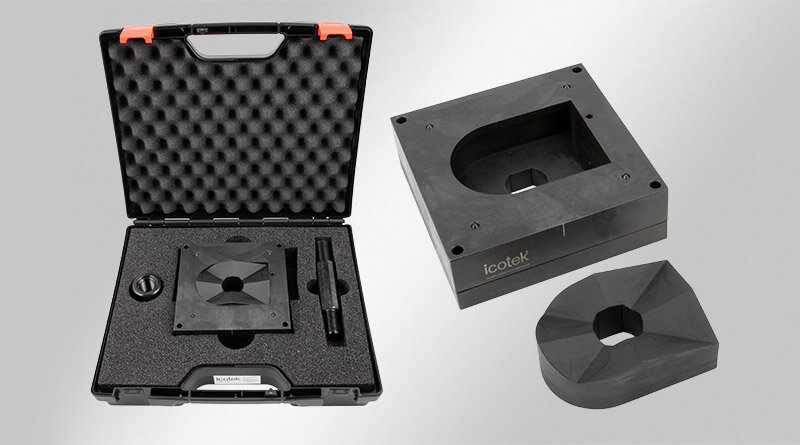

Scope of delivery:
- Punch, die, counter nut and draw stud
- robust plastic storage case
Specifications
| Material | Steel, hardened and burnished |
Advantages & Benefits
- For the special cut-out shapes for KEL-FW
- High-quality padded transport case
- Suitable for hydraulic punch drivers by icotek or other manufacturers
Product types & Sizes
Punch KEL-FW V2A
| Part No. | 80194 |
| EAN | 4251269335105 |
| Package quantity | 1 |
| Number of center punches | 4 |
| Thread UNF | 19 mm |
| Punching material | Stainless steel (V2A) |
| Max. wall thickness | 2 mm |
available
