AT-FL-M23
| Part No. | 39965 |
| EAN | 4251269323768 |
| Package quantity | 5 |
| Length | 42 mm |
| Width | 41.5 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
-
Products
?
IMAS-CONNECT? Adapter Systems for Industrial Connectors
?
AT-FL adapter grommets
AT-FL adapter grommets
based on KT large, for M23 square flange / IP65
The grommet AT-FL is constructed on the basis of a large KT cable grommet. The polyamide body is moulded with elastomer. All square flanges with dimensions 19.8 x 19.8 mm (M23) can be integrated.
The insertion of AT-FL into an icotek cable entry frame enables the routing of cables with and without connectors in combination with the creation of interfaces for M23 connectors within one cable entry system. Separate cut-outs for connectors are no longer necessary.
AT-FL provides ingress protection of up to IP65 (depending on the used flange and connector).
Specifications
| IP rating (EN 60529) | IP54, IP55, IP64, IP65 |
| Flame class | UL94-V0, self-extinguishing |
| Operating temperature | -40 C° to 90 C° |
| Material | Elastomer Body: Polyamide |
| Properties | silicone free, halogen free |
Advantages & Benefits
- By utilising the AT-FL grommet, connectors can be integrated directly into the cable entry frame
- Separate cut-outs for connectors are no longer necessary
- Space-saving solution
- Cost-saving assembly
Product types & Sizes
You Haven't Found Anything Suitable Yet?
Try the ProductFinderSuitable for:
KEL-FA
Split Cable Transit for Tool-Less Assembly, UL Type 12 / IP54
KT grommet based cable entry frames for tool-less assembly. Suitable for standard cut-outs of heavy industrial connectors.
KEL
Centrally Split Cable Transit, UL Type 12 / IP54
Classic KT grommet based multi cable transit for standard cut-outs of heavy industrial connectors. Also available as multi-row versions.
KEL 183
Split Cable Transit for Large Diameters, UL Type 12 / IP54
KT grommet based cable entry frames for supply cables with large diameters of up to 75 mm. Available as single or double row version.

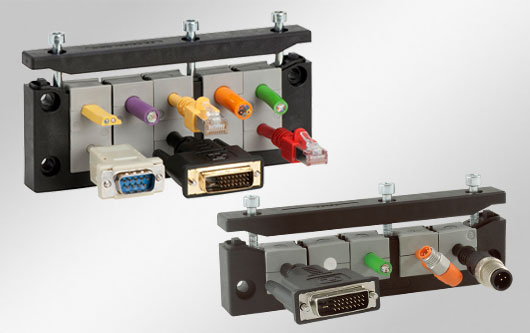

KEL-ER | KEL-ER-E
Split Cable Transit, UL Type 12/4X* / IP66
KT grommet based multi cable transit for standard cut-outs of heavy industrial connectors. Available as single or double row version.
KEL-FG | KEL-FG-E
Split 90° Cable Entry Enclosure, UL Type 12 / IP54
KT grommet based flange enclosure for routing preassembled cables in a 90° angle to the enclosure wall. Available as single or double row version.

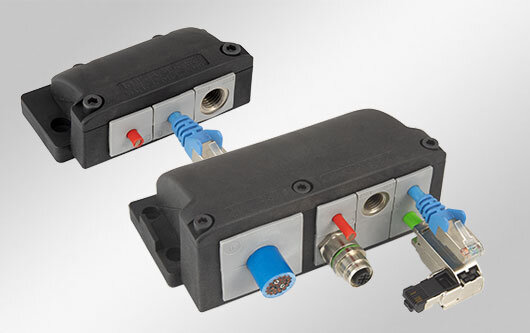

KEL-FG-ER | KEL-FG-ER-E
Split 90° Split Flange Enclosure, IP65
KT grommet based flange enclosure for routing preassembled cables in a 90° angle to the enclosure wall. Available as single or double row version.
KEL-U | KEL-E
Split Cable Transit, UL Type 12 / IP54
KT grommet based multi cable transit for standard cut-outs of heavy industrial connectors. Available as single or double row version.
KVT
Split Cable Gland, M20-M63, UL Type 12 / IP54
KT grommet based split cable gland for preassembled cables with metric thread sizes M20 / M25 / M32 / M40 / M50 / M63.
KVT-W90
Split 90° Cable Gland, M32 / M50, IP54
KT grommet based split cable gland for routing pre-terminated cables at a 90° angle to the enclosure wall. Metric thread sizes M32 / M50.
KVT-SNAP
Split Snap-In Cable Gland, M32-M63, IP54
KT grommet based split cable gland for tool-less snap-in mounting on metric cut-outs M32 / M40 / M63.
KVT 80
Split Cable Gland, M80, UL Type 12 / IP54
KT grommet based split cable gland for cables with large round connectors of up to 80 mm in diameter.
You might also be interested in the following products
AT-M | AT-K-M
Adapter Grommets for KEL with Inner Thread M5 - M25, IP65/IP66
Adapter grommets with inner thread based on KT cable grommets.

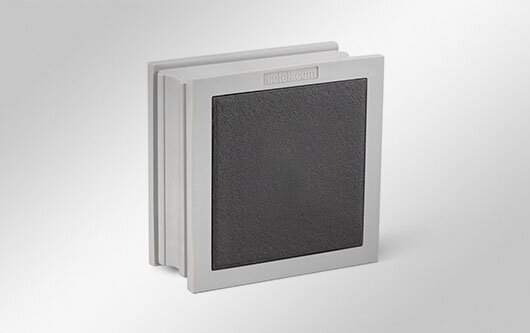

AT-B
Adapter Grommets for KEL for Custom Interface Solutions, IP65
Blank adapter grommet based on KT grommets for custom interface solutions (e.g. screw mounted hybrid connectors).

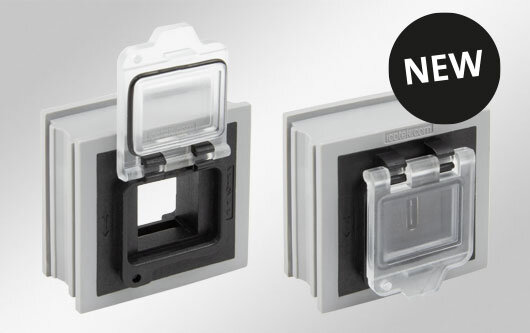

AT-KS-AK
Adapter Grommet with Protection Cover for KEL, for Keystone Jacks, IP54
Adapter grommet based on KT cable grommets for snap-in mounting of Keystone jacks.
AT-KS
Adapter Grommet for KEL, for Keystone Jacks
Adapter grommet based on KT cable grommets for snap-in mounting of Keystone jacks.
Keystone Jacks
Keystone Jacks
The Keystone jacks are also available individually for use with the adapter grommets.

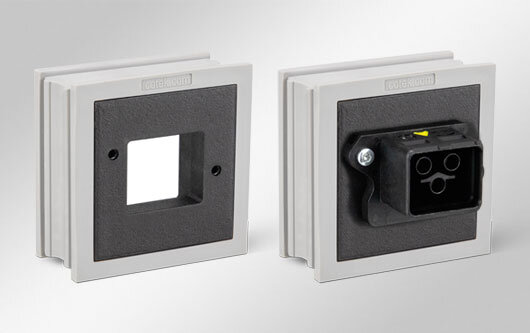

AT-PP
