Modular stackable cable clamp / cable cleat
The modular stackable cable clamp MSMC is used for easy, quick and secure fastening of cables, pipes and other cylindrical components.
? MSMC-
Products?Strain relief acc. to EN 62444
Strain relief for cables & wires
acc. to EN 62444
By using universal icotek strain relief plates or cable clamps with cord grip function the user can quickly assemble, organise and strain relieve single or multiple cables according to EN 62444. Find out more ?
icotek strain relief solutions at a glance
Cable clamps for C section rails C30
The cable clamps are characterised by a high clamping range and great flexibility. Ideally suited for strain relief on the C section rail C30.
? CCL
Strain relief plates for screw mounting
Plates for secure strain relief and cable routing. Mounting via screws.
? ZL
Strain relief plates for DIN rails
Strain relief and cable routing plates for snap-on assembly on 35 mm top hat DIN rails and C section rails C30.
? KZL
Strain relief plates for 35 mm top hat DIN rails
Strain relief plate for mounting via snap feet on 35 mm top hat DIN rails.
? SF|ZL
Distance bushings for strain relief plates
Distance bushings for multi layer mounting of strain relief plates which increases cable density.
? DH
Shield plates for ZL strain relief plates
EMC shielding plates for mounting on ZL strain relief plates.
? Shield plates for strain relief plates
EMC strain relief plates
Cable collector plates for EMI shielding and strain relief. Various mounting types.
? EMC strain relief plates
Search and filter products with the icotek ProductFinder!
Find the perfect product for your application. Try it now!

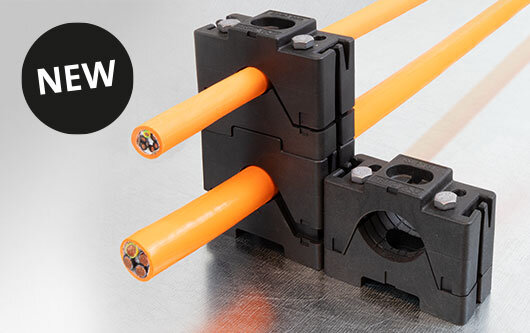

NEW! Modular stackable cable cleats for cable diameters 10 - 55 mm
The modular stackable cable clamp MSMC is used for easy, quick and secure fastening of cables, pipes and other cylindrical components. The variable clamping range is up to 16 mm.
Solutions for your cable strain relief
Whenever cables, wires, hoses or conduits with diameters up to 20 mm have to be fixed, routed or strain relieved the icotek strain relief plates with cord grip function are used. With just one component you can route and strain relieve up to 12 of these lines, in static or dynamic applications.
The undercut on the comb shaped profile of the strain relief plate provides a secure hold of cables with diameters from 5 to 20 mm when using regular cable ties. Compared to conventional metal or plastic cable clamps and cord grips, the icotek strain relief plates are a much more flexible and cost-effective solution.
To find out more, watch the assembly video.
The product portfolio includes strain relief plates for several mounting types such as ? screw-type mounting on metal plates, ? plugging onto 35 mm top hat rails or 30 mm C section rails (C30). Due to our unique ? multilayer mounting possibilities the packing density can be greatly increased.
Strain relief plates ZL 03|04|05 feature different comb widths. For routing several cables with varying diameters this ZL plate is the perfect solution. These strain relief plates are also suitable for cable diameters <5 mm.
For applications in high vibration environments or with constant dynamic stress on the cables the strain relief plates ZL-AB (with aluminium bushings) and ZL-MS (with brass bushings) are used. These bushings provide a better fit of the screwed strain relief plates.
In combination with ? ZL|SB-EMC shielding plates you unite cable management, strain relief and EMI shielding in one single component.
Well tested & certified
Approvals and standards like flame class UL94-V0, DNV, RINA, ECOLAB detergent resistance or the European railway standard EN 45545-2 for fire safety enable use of strain relief plates in many application areas. Certificates or declarations of conformity can be requested directly from us.
