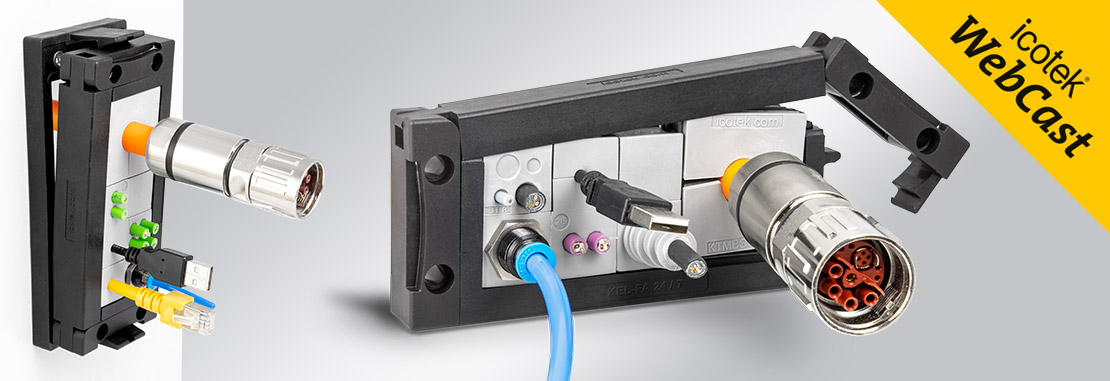

Get to know the brand new cable entry frame KEL-FA in this webcast and take a look at the flexible KTMBS cable grommet with us! The KEL-FA series is a compact system for routing and sealing cables with and without connectors, as well as hoses and pneumatic cables. After the frame has been equipped with the KT grommet system, the cover is put on and the two clamping levers are locked with the lower part by pressing them down. The KTMBS grommet for the KEL system enables routing of cables with and without connecotrs, the diameter of which can vary by up to 3 mm.

The vertical market around BESS Battery & Energy Storage Systems have recently taken on enormous importance. Depending on the size and type of the application, the storage hardware calls for various requirements when it comes to the cable entry systems being used. These requirements range from extremely flexible and compact versions for smaller and only few cables to robust systems when cables with larger currents have to be routed. The various icotek cable entry systems meet these requirements perfectly. In this webcast we will give you an overview of systems already in use in this market. Furthermore, we will illustrate how cable entry can be combined with EMC shielding in a simple and space-saving manner.

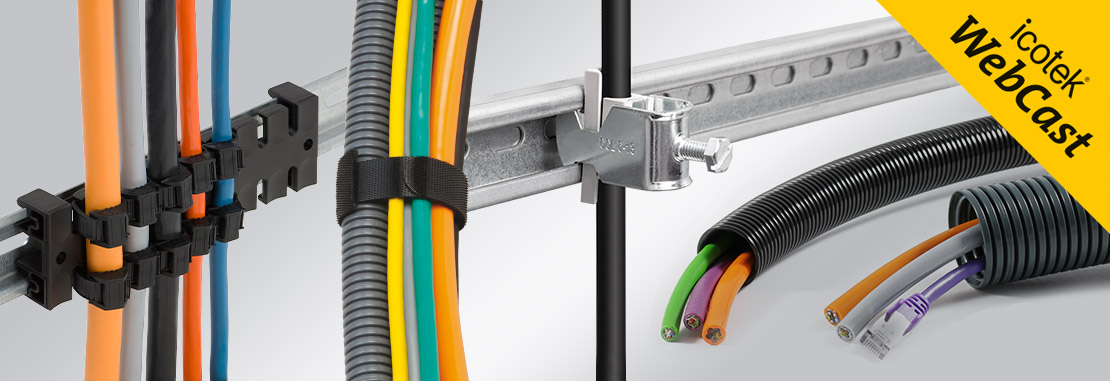

With the universal icotek systems, cables, wires and hoses can be routed quickly, safely and cleanly and at the same time relieved against strain. This applies to both static and dynamic loads. The possible applications range from routing cables into machines, control cabinets and enclosures to cable drag chains. Various mounting options, e.g. for the top-hat rail, C section rail (C30) or for direct mounting, offer a wide range of applications. The cables are mounted using standard cable ties. Indentations on the comb-like profile prevent the cable ties from slipping out and ensure a secure hold. We will also present CONFiX? cable routing solutions, with which cables routed in protective conduits can be safely and easily inserted into machines, control panels and control cabinets.

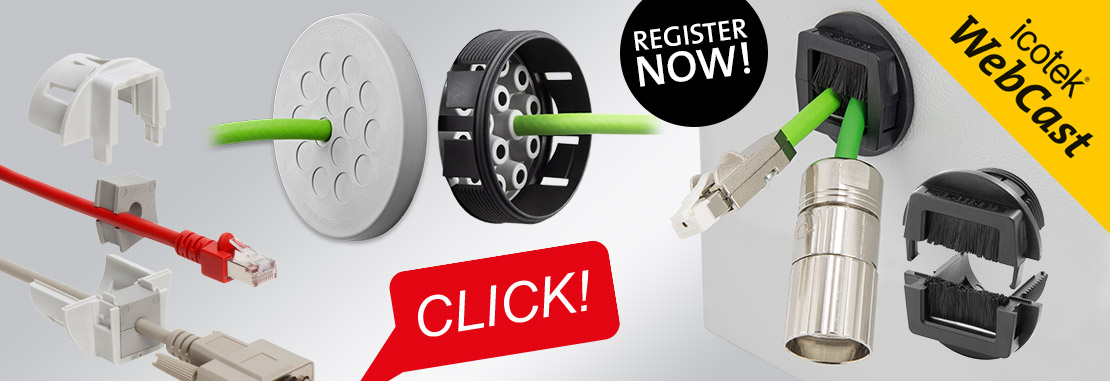

In our current webcast, we introduce our CLICK systems to you. icotek has recently started offering three different, round ?CLICK“ products, all of which represent an efficient alternative to conventional cable glands. These products include the established split brush plate KEL-BES-S, the easy-to-assemble split cable gland QVT-CLICK - both suitable for routing cables with connectors - and the completely new multi-membrane cable entry plate KEL-DPZ CLICK. The ?CLICK“ products offer two different mounting options and thus a high degree of flexibility. Due to the nature of the thread, it is possible to snap-in all these products directly or to fix them with lock nuts. With the compact and easy-to-install CLICK systems, advantageous installation options in limited spaces can be offered. With our compact and hybrid CLICK products, cables in control panels, plants and machines can be routed and sealed up to IP68 and strain relief provided.

Comment acheminer vos cables dans une armoire de fa?on efficace en économisant du temps et de l’argent ?

Présentation des solutions icotek pour cables avec et sans connecteurs. Nous allons également vous montrer les réalisations des différents secteurs de l’automatisation, agro-alimentaire et autres.

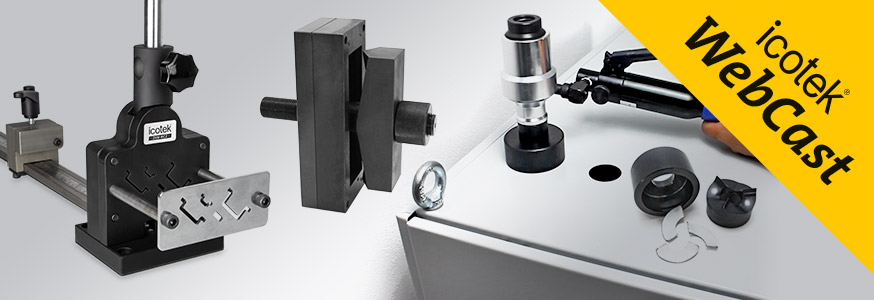

icotek offers a small-sized hand hydraulic punch driver which allows a quick and easy punching of rectangular, square and round holes. The holes fit exactly the cut-out dimensions of most icotek cable entry systems. When you have to punch several holes, this hand hydraulic punch driver is much faster than any manual wrench-style punches. The DIN-RC 2 cutter cuts various DIN rails effortlessly and accurately.  The cut is clean and free of burrs; there is no waste. In our latest webcast, we will show you how you can easily realise round and square cut-outs for our cable entry systems and cut your DIN rails to the right length.

Depending on the size and type of the charging station, the charging infrastructure hardware calls for various requirements when it comes to the cable entry systems being used.  These requirements range from extremely flexible and compact versions for smaller and only few cables to robust systems when cables with larger currents have to be routed. The various icotek cable entry systems meet these requirements perfectly. In this WebCast we will give you an overview of systems already in use in this market. Furthermore, we will illustrate how cable entry can be combined with EMC shielding in a simple and space-saving manner.

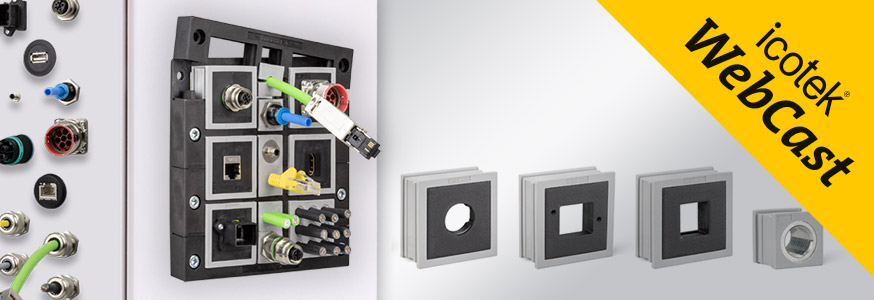

The IMAS-CONNECT? modular adapter system by icotek is a modular designed grommet system for mounting metric connectors, PushPull modules, Keystone couplers, hose fittings, pressure compensation elements and much more. Pre-terminated and standard cables or hoses can be routed and, at the same time, the system serves as an interface for connectors. By utilising the modular adapter system, the cable entry frame becomes a hybrid system. During our WebCast, we are going to show you the different application possibilities of our IMAS-CONNECT? system and how easily you can turn your cable entry system into a hybrid system!

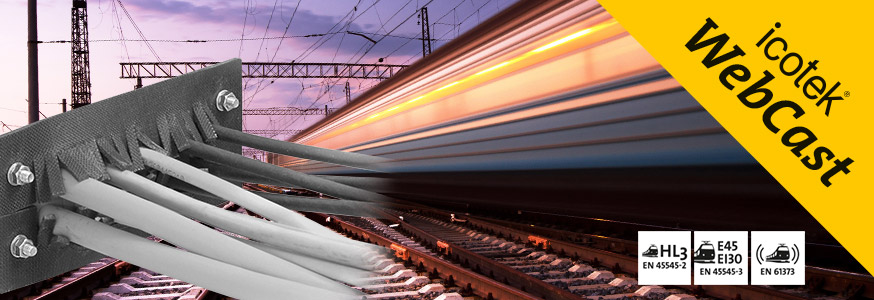

Sealing of conduits, pipes or cables according IP ratings up to IP 68 / UL Type 4X and railway standards EN 45545-2

Discover how to upgrade the system into a fire barrier according EN 45545-3

Shock and vibration proof cable management according EN 61373

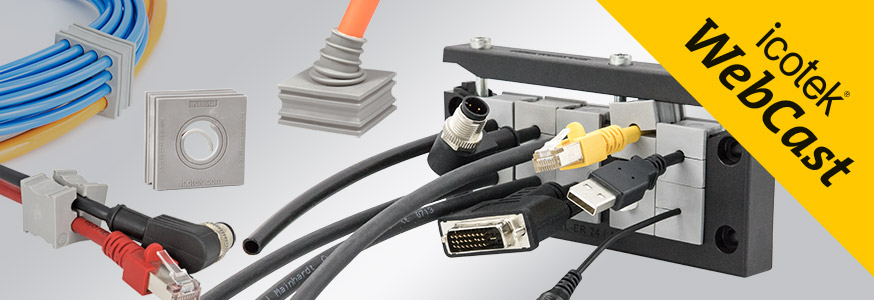

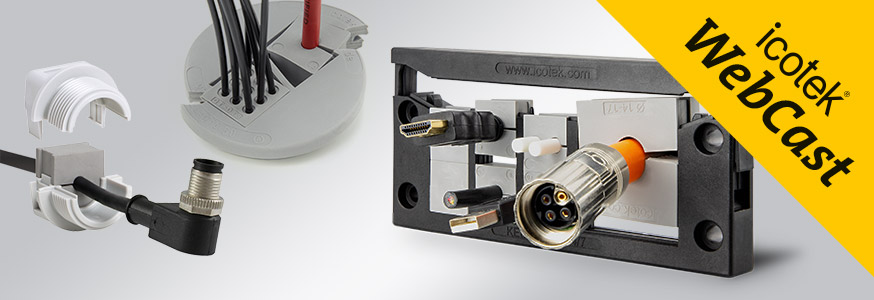

We explain the basics! Using the patented grommet based icotek cable entry system, a large number of pre-terminated cables and cables without connectors can be quickly routed into enclosures, control panels or machines and be sealed with up to IP66 / IP68 and UL type 4X rated ingress protection. In addition, the cable entry frames serve as strain reliefs on the cable. The split cable entry system enables quick and easy assembly which is great for retrofits and maintenance. This webcast will put a special focus on the wide variety of grommets and their assembly. We would like to give you an overview of our small, large, single and multiple slotted grommets, but also of our variety of flexible multi-area grommets.

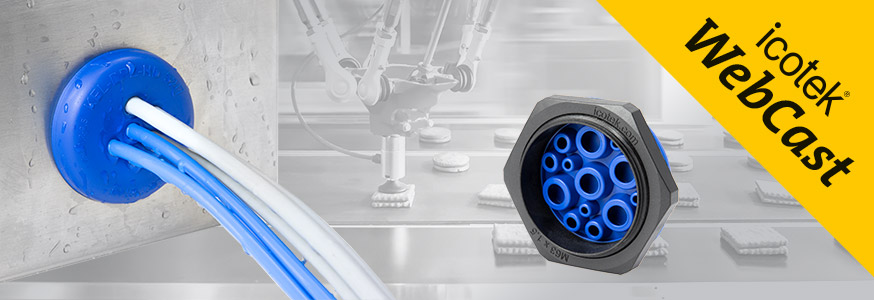

With the membrane based hygienic cable entry plates, up to 35 cables or pneumatic hoses can be quickly and space-efficiently routed into control cabinets, panels and machines and be sealed with certified protection classes up to IP66 / IP68. FDA compliant hygienic icotek cable entry plates are cost, space and time saving alternatives to hygienic stainless steel cable glands.

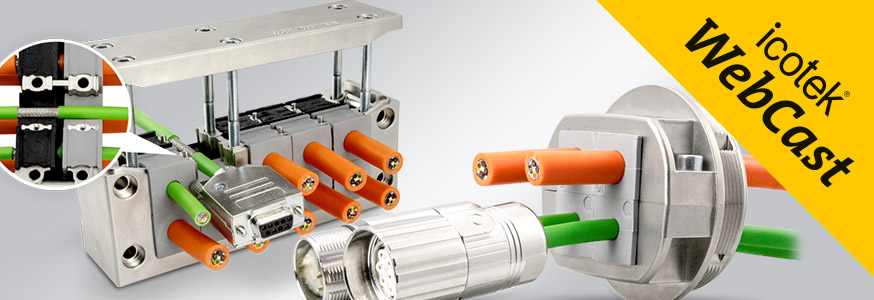

In case of conducted as well as field bound EMI disturbances, our split cable entry system EMC-KEL-DS and our split cable gland EMC-KVT-DS offer an effective way to divert and block those disturbances and provides an alternative to conventional EMC cable glands — especially when routing cables with connectors. The divisibility makes it possible to insert pre-assembled cables and to seal them according to IP 55 without removing the pre-assembled plug. The cable shield is contacted over 360° via the highly conductive EMC-KT grommet. The KT grommet has a purely sealing and strain relief function. We, therefore, offer a solution that also guarantees EMC tightness at the location of the housing and, at the same time, reliably dissipates shield-related interference.

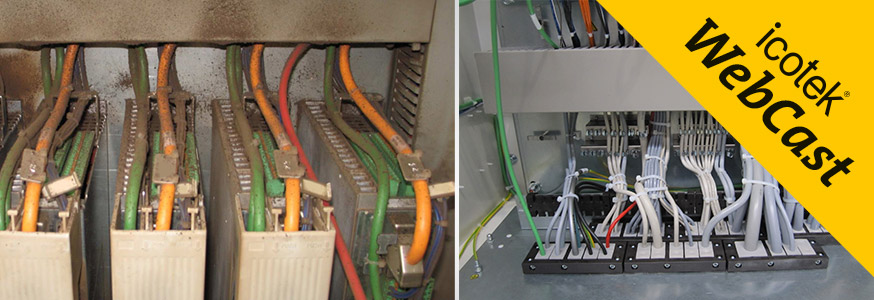

Control cabinets used in industrial production must be reliably protected against dirt and dust. Otherwise, you run the risk of short circuits caused by conductivity of dust/dirt deposits.  Additionally thermal insulation capability can cause individual components to overheat resulting in machine failures, or worst case, electric shock or fire. With the help of icotek cable entry solutions for control cabinets, you can reduce disturbances and failures to a minimum. In this webinar we will show you how to effectively protect users and systems.

With the new version of the compact, split cable entry system KEL-QUICK icotek released a highly efficient and cost-effective possibility for passthrough and IP54 sealing of cables with or without connectors, conduits and pneumatic hoses. In addition to the fast and tool-free assembly, the system convinces with a time saving of up to 70% compared to conventional cable glands. After equipping the frame with the cables or hoses, the cover lid of the KEL-QUICK is simply snapped onto the frame. A fast and easy assembly is the biggest benefit when using the QUICK series – when used with the KEL-SNAP frame a complete tool-free installation is possible. Slit cable grommets of the QT series are used for routing lines with diameters of 1 – 29 mm within the KEL-QUICK.

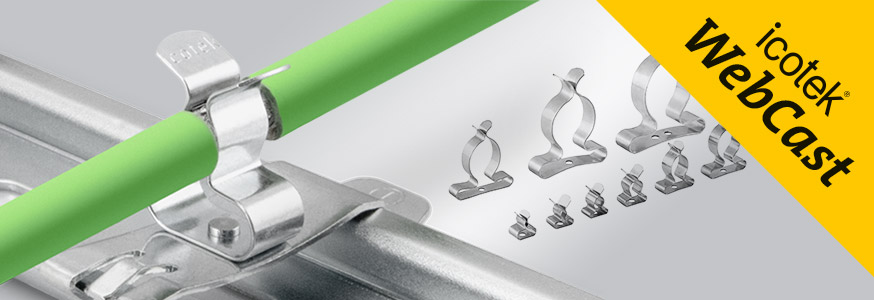

For process measurement and control equipment an increasingly higher level of protection against failure is required. EMI shielding and earthing is very important. The area where the cable shield is connected to the cabinet earth is a critical point. It is very important that the connection has a low resistance. All icotek EMC cable clamps for shielding cable diameters from 1.5 to 75 mm have been tested utilising various frequency ranges and in all tests there was minimal leakage resistance.

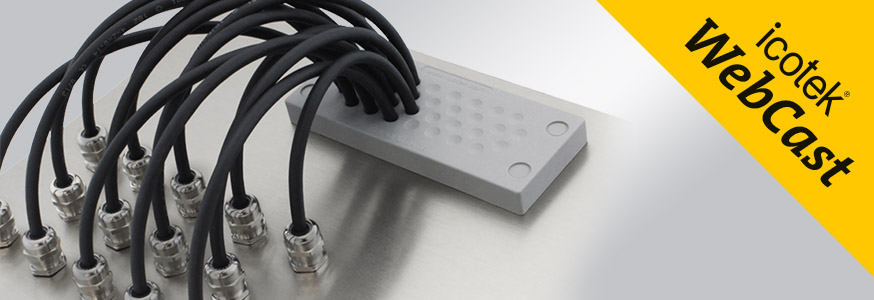

With the membrane based cable entry plates cables, pneumatic and hydraulic hoses or optical fibres can be quickly and space-savingly routed into control cabinets, panels or machines and be sealed with certified protection class up to IP68 (acc. to EN 60529) and UL type 4X (acc. to UL50 E). icotek cable entry plates are cost, space and time saving alternatives to traditional cable glands.

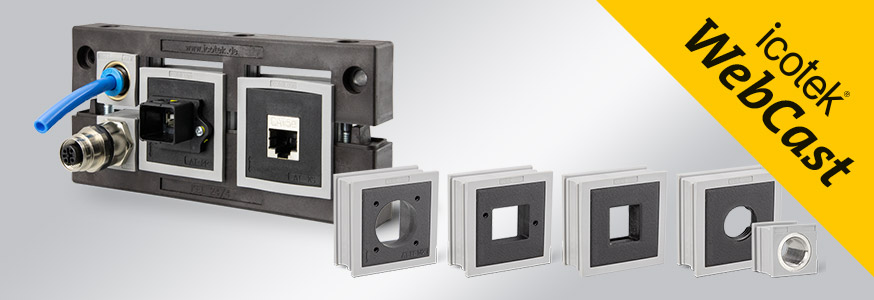

IMAS-CONNECT? by icotek is a modular designed grommet system for mounting circular connectors, Keystone jacks, PushPull connectors, hose fittings, pressure compensation elements and much more. By utilising the modular adapter system, the split icotek cable entry frame becomes a hybrid system.
